Thickness Tolerance in Fibreboard: Why It Drives Fit and Waste
Fibreboard is published at 2–30 mm thick with a tolerance of ±0.2 to ±0.5 mm, and 1,000 twelve-millimetre panels taken from opposite ends of that band stack a full metre apart in height (example arithmetic). Tolerance decides whether a laminated panel drops into a groove, whether a pallet travels level, and how much of a run finishes as waste.
Key takeaways
- Thickness is published from 2 to 30 mm, and the range names 2.7 mm and 3 mm at the thin end, then 6, 9, 12, 15 and 18 mm as common steps.
- The published tolerance band is ±0.2 to ±0.5 mm, tighter than the ±0.5 mm quoted for film faced plywood.
- The 2100 × 2500 mm large format is published only for thicknesses up to 9 mm.

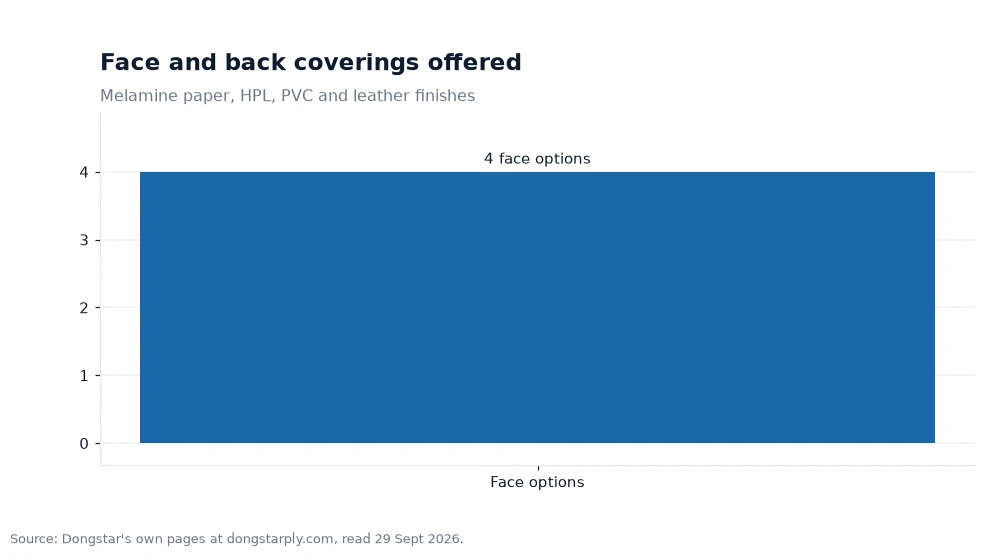

- Four face coverings are listed, melamine paper, HPL, PVC and leather, and each one adds build to the finished panel.
Where the published band comes from
Fibreboard is formed from wood fibre and resin, pressed into a mat and then calibrated. Calibration is the step that gives the range its narrower tolerance: the board is sanded to a target thickness after pressing, so the finished surface can be held closer to nominal than a veneer-core panel that is simply pressed and trimmed.
It is also worth noting how the band is published: as a range rather than as one figure for the whole family. A 3 mm panel and a 24 mm panel do not hold the same absolute tolerance, so ±0.2 to ±0.5 mm states the window across the range and leaves the single figure to the thickness on the order.
That does not make the band vanish. Boards are produced in runs, and a run has a spread, however small. The published ±0.2 to ±0.5 mm describes the spread the mill accepts and is prepared to measure: roughly a fifth of a millimetre on the thin end of the range and up to half a millimetre as boards get thicker, where a fixed sanding allowance covers a larger share of a thinner section.
Thin boards and the large-format ceiling
The range starts at 2 mm, which is where MDF stops being a structural material and becomes a facing or backing sheet. Steps of 2.7, 3, 6, 9, 12, 15 and 18 mm cover most furniture and interior work, with 12 to 18 mm the usual choice for doors, carcasses and shelving.
Size and thickness are linked at the top of the range. The largest published format, 2100 × 2500 mm, is offered for thicknesses up to 9 mm only. Below that ceiling a mill can still handle the panel through sanding and handling without the board flexing under its own weight; above it, the same 5.25 m² sheet becomes heavy enough that the thinner formats stop being practical. The standard 1220 × 2440 mm sheet carries the full 2–30 mm thickness range.
Why a covered face is less forgiving
A raw board can be trimmed, sanded or shimmed on site. A covered one usually cannot. The range publishes melamine paper, HPL, PVC and leather as face options, and the coverings that add real build, particularly HPL, change the finished dimension of the panel rather than sitting inside it.
The practical failure mode is a groove, a rebate or a channel cut to a nominal figure. A 12 mm panel at the wide end of the band measures up to 12.5 mm, and a housing cut to 12.5 mm closes on a panel at the narrow end, 11.5 mm, with a full millimetre of slack. On joinery that slack becomes a visible gap or a joint that relies on a fixing rather than a fit, and the cause is a tolerance band that was never written into the joinery drawing.
Base boards and how tolerance behaves in service
The base board decides what happens to that fit over time. Raw MDF is the general substrate; MHR MDF (Green) is the moisture-resistant version for humid interiors; FR MDF (Red) is published as the fire-retardant board; HDF (Black) is the denser option for wear surfaces. Each is offered across the same thickness steps, so the choice can be made without leaving the published range.
Thickness stability and moisture performance are linked, because a fibreboard panel that takes on water swells at the exposed edges rather than across the face. A door that grows 0.5 mm in thickness after a damp season has moved through the core, not through the covering, which is why edge protection on cut panels belongs in the same conversation as the tolerance figure.
Where tolerance turns into waste
Tolerance costs money in three places: fit, packing and yield. Fit problems are fixed on site with labour; packing problems appear as unstable stacks and damaged corners; yield problems appear when a cut list assumes a consistent figure and the panels arrive spread across the band.
The third one is the largest and the quietest. A nested cutting plan generated for 12 mm panels will not nest the same way for 12.5 mm panels if the fit allowances were tight, and each re-nest costs board. Buyers who state the band in the order, and check it on arrival, keep that cost where it belongs, on the drawing rather than on the shop floor.
| Thickness step | Published detail | What it changes |
|---|---|---|
| 2–30 mm | Full published range | Choice of substrate for furniture and fit-out |
| 2.7, 3, 6, 9 mm | Thin end of the range | Backing sheets, facings, curved work |
| 12, 15, 18 mm | Common furniture steps | Doors, carcasses, shelves, grooves |
| 2100 × 2500 mm | Large format, thickness up to 9 mm | Large linings, panel handling weight |
Worked example: 1,000 panels measured at both ends
Take 1,000 panels at 12 mm nominal. Stacked flat they measure 1,000 × 12 = 12,000 mm, or 12 m. At the wide end of the band, 1,000 × 12.5 = 12,500 mm; at the narrow end, 1,000 × 11.5 = 11,500 mm (example arithmetic). The spread between the two stacks is 1,000 mm, exactly one metre.
Per pallet the same arithmetic reads smaller and more usefully. One hundred panels at 12 mm nominal give 1,200 mm; the same hundred panels spread across the full band give between 1,150 mm and 1,250 mm, a 100 mm difference on every pallet (example). Container loading plans and rack heights that assume an exact figure are exposed by that number before any board is cut.
Frequently asked questions
What does a ±0.2 to ±0.5 mm band actually cover?
It covers the finished thickness of the board after calibration. Thin panels sit nearer the tighter figure and thicker panels nearer the wider one, and every board in a delivery should fall inside the band rather than at one end of it.
Does a covered panel measure the same as a raw board?
No. Melamine paper, HPL, PVC and leather all add build, so the finished panel is thicker than the substrate underneath. A groove or rebate should be cut to the measured finished thickness of the panels on site, not to the nominal figure quoted for the raw board.
Which thickness is published for the 2100 × 2500 mm sheet?
Thicknesses up to 9 mm. The standard 1220 × 2440 mm sheet carries the wider 2–30 mm range, so a project that needs thick panels in a large format has to be planned around the standard sheet instead.
Checking the band before the cut
Buyers who want the full thickness list in context can read how chipboard thickness steps are published, and the faced options that change the finished dimension are set out on the melamine-faced panel page. A Medium Density Fibreboard that publishes thickness and tolerance side by side gives a joinery drawing something to check against.
Thickness steps, tolerance bands and format limits quoted in this article come out of that the supplier's website, as read on 29 September 2026 — as the source for this comparison, and as standard carried into this briefing[1].
